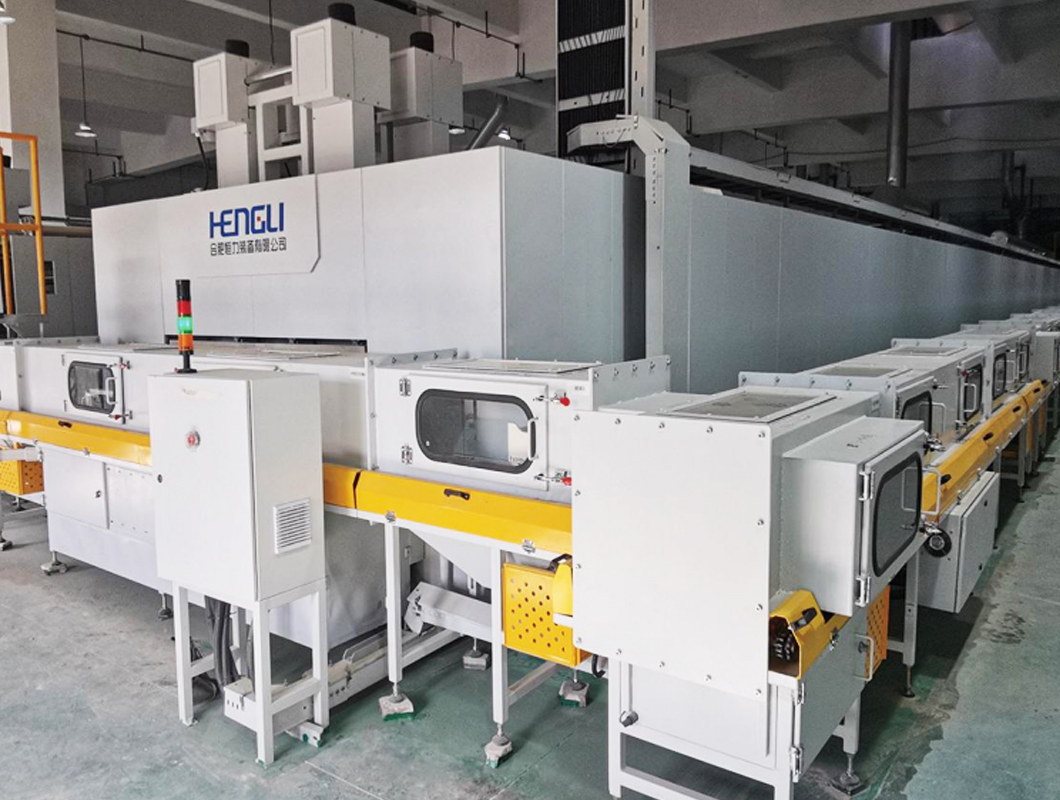

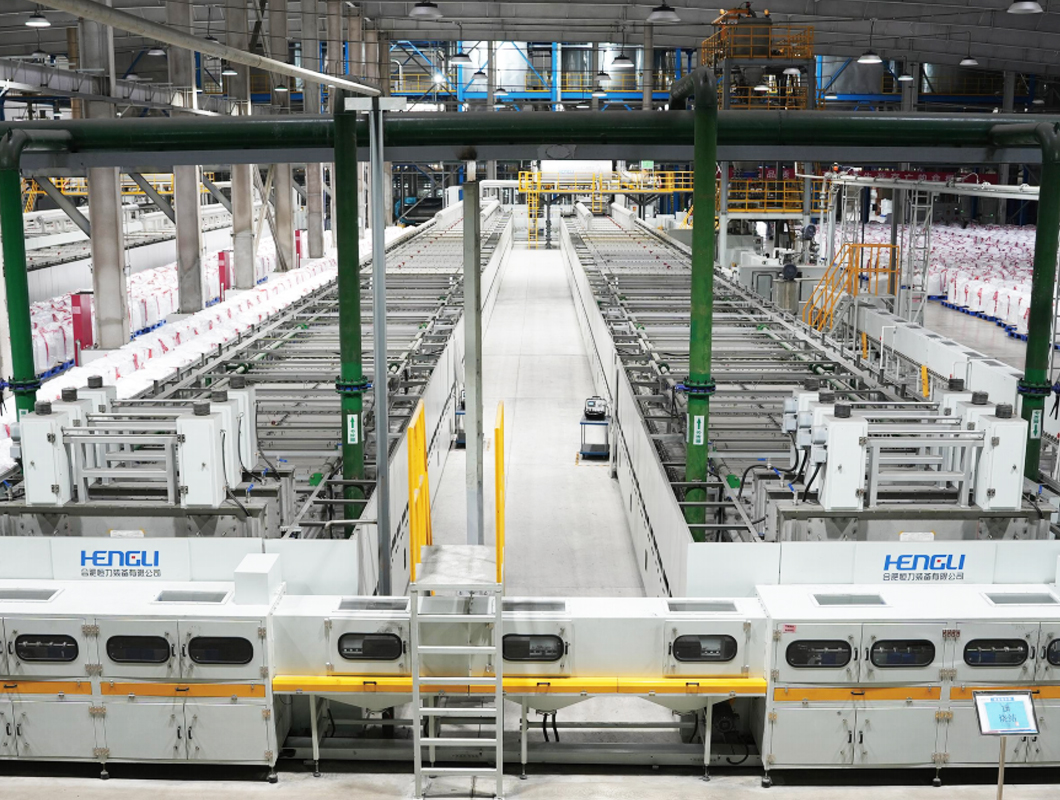

Specialized for firing heat treatment process of LFP lithium battery cathode materials.
1. High precision: effective temperature difference<±5°C, ensuring high material consistency;
2. Large production capacity: six rows three layers 100m configuration, single kiln annual capacity up to 30,000 tons/unit (vary by process);
3. Uniform atmosphere: left center right preheating air inlets with independent flow regulation to minimize temperature field disturbance; closed-loop exhaust control system maintains stable pressure while ensuring efficient exhaust, stabilizing product performance;
4. Optimized cooling design: cooling efficiency enhanced via Venturi effect and external circulation cooling tests, combined with data analysis and simulation modeling.
| Rated Temp | 700-1000℃ |
| Max Temp | 1000℃ |
| Atmosphere | Nitrogen, oxygen content<10ppm |
| Serpentine Offset | Front-back offset<±50mm; left-right offset<±25mm |
| Heating Method | Top-bottom heating+sides auxiliary temperature control |
| Loading Design | 6 rows, 2 layers |
