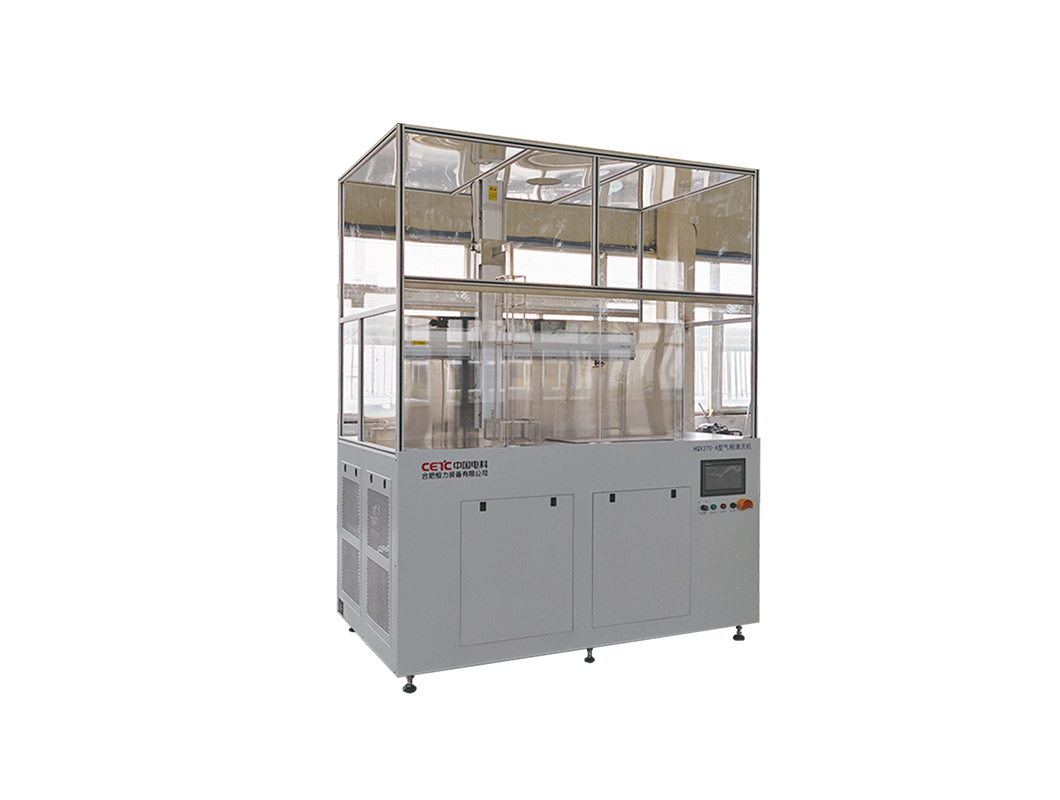

Designed for non-aqueous precision cleaning of contaminants including rosin, flux, oil stains and fine particles.
1. Optional modules: ultrasonic cleaning system, exhaust ventilation system, enclosed chamber system, specialized baskets;
2. Standard configuration: two or three tanks structure (customizable within size range);
3. Key equipment (compressors, fans, circulating pumps) from leading brands ensure reliable and efficient operation;
4. High cleaning efficiency with no secondary pollution, minimizes workpiece damage during processing;
5. Double-layer condenser coil design with independent dual-compressor refrigeration, 150% oversized condensation are with unique "solvent retention" feature, independent operation of each condensation layer;
6. Molecular sieve-equipped gravity liquid-water separator and circulating filtration system to maximize solvent reuse;
7. Automatic detection and alerts for solvent replacement based on boiling point changes to prompt solution renewal.
| Series | HQX500 | HQX900 |
| Steam Tank Size | 260x315x305mm (L*W*H) | 460x315x305mm (L*W*H) |
| Ultrasonic Tank Size | 260x315x300mm (L*W*H) | 460x315x300mm (L*W*H) |
| Steam Tank Heating Power | 3KW, adjustable power | 4.5KW, adjustable power |
| Ultrasonic Tank Heating Power | 1KW | 1.5KW |
| Condensing System | One: -5~5°C, the other:-20~-10°C, effectively recovers cleaning solution | |
| Ultrasonic Power | 250KW | 500KW |
| Ultrasonic Frequency | 28KHz、40KHz、80KHz、120KHz、160KHz (optional) | |
| Temperature Control |
(HTC、LTC、TH1、RT、SVC) five-point temp control (30-100°C adjustable) |
|
| Liquid Separation |
Composite structure + molecular sieve design, effective removal of water |
|
| Circulation Filtration | Flow rate: 26.4LPM, Filtration accuracy: 5um | |
| Jetter | Flow rate: 30LPM | |
| Manipulator | Servo control, automatic loading & unloading | Servo control, automatic loading & unloading |
| Power Supply | Voltage: 220V | Voltage: 380V |
| Weight | About 700kg | About 850kg |
| Size | 1900*1200*2670mm (L*W*H) | 2200*1200*2670mm (L*W*H) |
| Applicable Medium |
NPB, Freon, TCE, HCFC-141b, CH₂F₂, AK-225, HCFC-225, HFE series cleaners |
|
