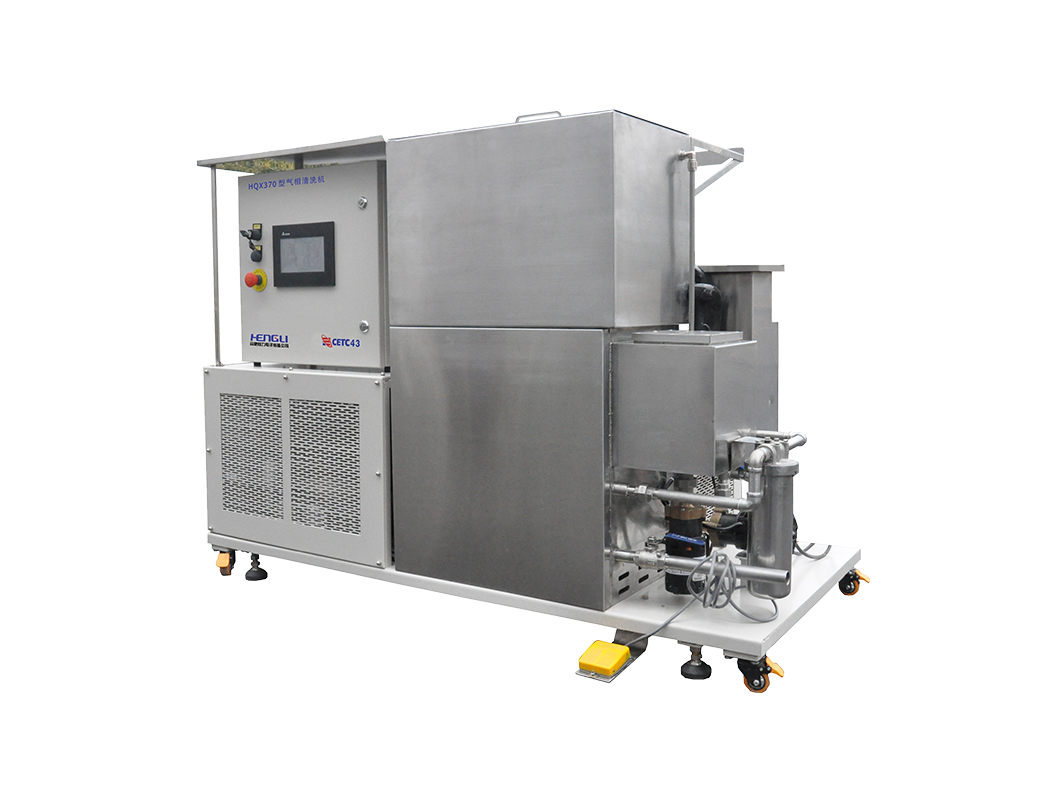

Designed for non-aqueous precision cleaning of contaminants including rosin, flux, oil stains and fine particles.
1. Optional modules: ultrasonic cleaning system, exhaust ventilation system, enclosed chamber system, specialized baskets;
2. Standard configuration: two or three tanks structure (customizable within size range);
3. Key equipment (compressors, fans, circulating pumps) from leading brands ensure reliable and efficient operation;
4. High cleaning efficiency with no secondary pollution, minimizes workpiece damage during processing;
5. Double-layer condenser coil design with independent dual-compressor refrigeration, 150% oversized condensation are with unique "solvent retention" feature, independent operation of each condensation layer;
6. Molecular sieve-equipped gravity liquid-water separator and circulating filtration system to maximize solvent reuse;
7. Automatic detection and alerts for solvent replacement based on boiling point changes to prompt solution renewal.
| Series | HQX500 | HQX900 |
| Steam Tank Size | 260x315×305mm (L*W*H) | 460x315×305mm (L*W*H) |
| Ultrasonic Tank Size | 260x315×300mm (L*W*H) | 460x315×300mm (L*W*H) |
| Steam Tank Heating Power | 3KW, adjustable power | 4.5KW, adjustable power |
| Ultrasonic Tank Heating Power | 1KW | 1.5KW |
| Condensing System |
One:-5~5°C, the other:-20~-10°C effectively recovers cleaning solution |
|
| Ultrasonic Power | 250KW | 500KW |
| Ultrasonic Frequency | 28KHz、40KHz、80KHz、120KHz、160KHz (optional) | |
| Temperature Control |
(HTC、LTC、TH1、RT、SVC) five-point temp control, (30-100°C adjustable) |
|
| Liquid Separation |
Composite structure + molecular sieve design, effective removal of water |
|
| Circulation Filtration | Flow rate: 26.4LPM, Filtration accuracy: 5um | |
| Jetter | Flow rate: 30LPM | |
| Manipulator | / | / |
| Power Supply | Voltage: 220V | Voltage: 380V |
| Weight | About 400kg | About 500kg |
| Size | 1550*1050*1150mm (L*W*H) | 2050*1050*1150mm (L*W*H) |
| Applicable Medium | NPB, Freon, TCE, HCFC-141b, CH₂F₂, AK-225, HCFC-225, HFE series cleaners | |
