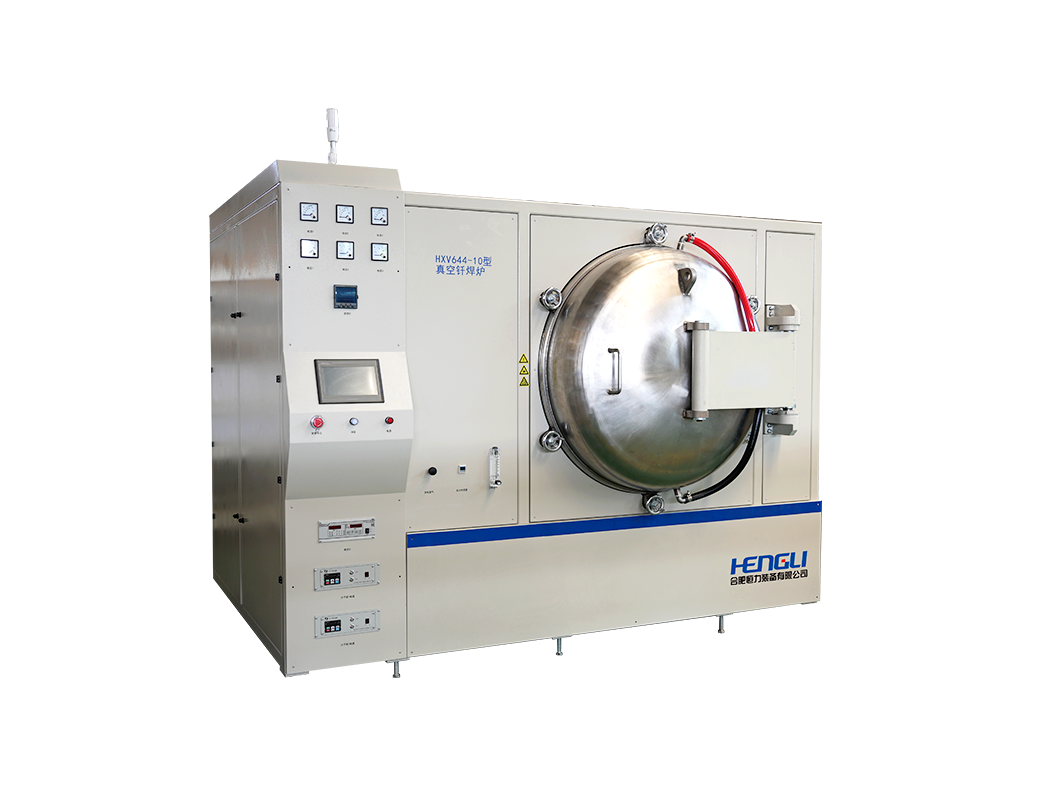

Horizontal, single-chamber design with double-layer water-cooled furnace body and front-loading door. Consists of furnace body, heating chamber, vacuum system, gas charging/discharging system, water cooling system, electrical control and power supply system.
Adopts horizontal, double water-cooled front-loading modular structure, equipped with stainless steel high-temperature resistant chamber and large volume cavity. Ultimate vacuum <6.67×10⁻⁴ Pa, pressure rise rate <0.2 Pa/h, controllable partial pressure within 1000 Pa. Integrates high-precision multi-mode temperature control system with visual fault code display, three-level alarm linkage, and emergency protection. Dynamic airflow regulation ensures precise temperature control, combining process adaptability and thermal field uniformity.
| Series | Effective Size | Heating Element | Max Temp | Chamber Structure | Heating Zone | Atmosphere |
| HXV | 300*200*200-900*600*600mm | Molybdenum lanthanum/Iron chromium aluminium/Nickel chromium alloy | 1200℃ | Circular/Square | Multiple | N2/Ar/Vacuum |
